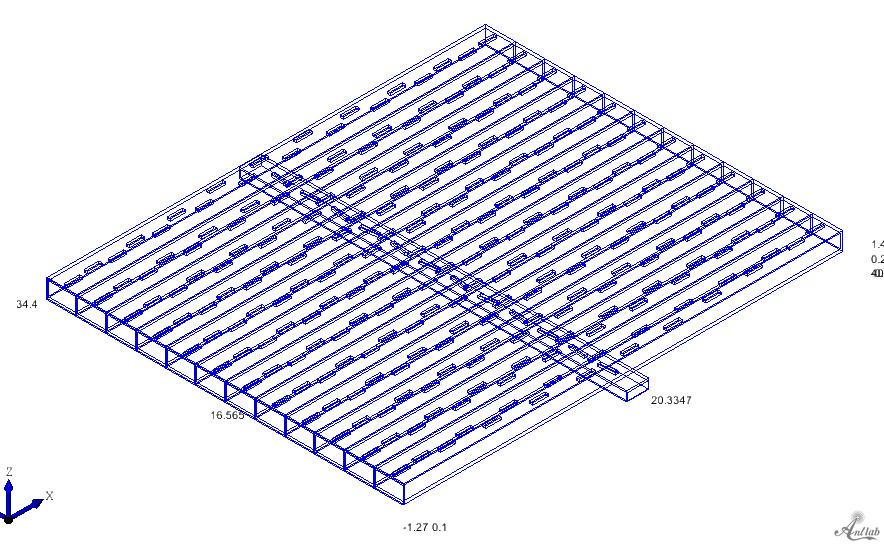

缝隙阵天线
- 一体金属加工
- 结构牢固
- 旁瓣控制低
- 赋形波束
- 产品描述：缝隙波导阵
产品介绍
各种频率的缝隙波导阵
| Weather Radar | 9315-9375 MHz | 34.7 dB | 2.0:1 |
| Weather Radar | 9328-9338 MHz | 34.0 dB | 1.3:1 |
| Weather Radar | 9.3-9.4 GHz | 31.0 dB | 1.4:1 |
| Antenna & Feed Assembly | 9295-9385 MHz | 26.0 dB | 1.5:1 |
| Slot Array Antenna | 16.75 ± 0.25 GHz | 29.8 dB | 1.6:1 |
| Flat Plate Antenna | 9310 ± 10 MHz | 30 dB | 1.4:1 |
| Flat Plate Antenna | 9310 ± 10-9375 ± 20 MHz | 31 dB | 1.4:1 |
| Flat Plate Antenna | 9345 ± 30 MHz | 29.3 dB | 1.4:1 |
| X-Band Antenna | 9.555 ± .050 GHz | 25 dB | 1.3:1 |
| Flat Plate Antenna | 9.19-9.44 GHz | 34.0 dB | 1.65:1 |
| Slot Array Antenna | 9.25-9.45 GHz | 33.8 dB | 1.65:1 |
| Sum Aperture Slot Array | 9.4-10.0 GHz | 32.5 dB for 9.525-9.875 GHz | 1.5:1 |
| 32.0 dB for 9.4-9.525 GHz | |||
| 32.0 dB for 9.875-10 GHz | |||
| S-Band Antenna | 2.6 GHz ± 60 MHz | 26 dB | 1.50:1 |
| Transmit Slot Antenna | 1.672-1.695 GHz | 17.5 dBi (inner circle) | 1.25:1 |
| 16.5 dBi (outer circle) | |||
| Transmit Slot Antenna | 10.742-10.942 GHz | 31.4 dBi (coverage area) | 1.5:1 |
| Transmit Slot Antenna | 11.202-11.402 GHz | 31.4 dBi (coverage area) | 1.5:1 |
| Flat Plate Antenna | 2125 ± 125 MHz | 12.1 dB | 02:02:01 |
| Flat Plate Antenna | 2125 ± 125 MHz | 20.7 dB | 02:02:01 |
| Flat Plate Antenna | 4650 ± 250 MHz | 20.2 dB | 2.2:1 |
| Flat Plate Antenna | 4650 ± 250 MHz | 27.9 dB | 2.2:1 |
| Flat Plate Antenna | 6750 ± 350 MHz | 23.9 dB | 2.2:1 |
| Flat Plate Antenna | 6750 ± 350 MHz | 32.0 dB | 2.2:1 |
| Flat Plate Antenna | 8300 ± 400 MHz | 25.2 dB | 2.2:1 |
| Flat Plate Antenna | 8300 ± 400 MHz | 33.3 dB | 2.2:1 |
| Flat Plate Antenna | 9350 ± 650 MHz | 26.1 dB | 2.2:1 |
| Flat Plate Antenna | 9350 ± 650 MHz | 34.2 dB | 2.2:1 |
| Flat Plate Antenna | 11.125 ± 575 MHz | 27.8 dB | 2.2:1 |
| Flat Plate Antenna | 11.125 ± 575 MHz | 35.8 dB | 2.2:1 |
| Millimeter Wave Array | 35.5-35.9 GHz | 31.0 dB |
